Stock #: 5471

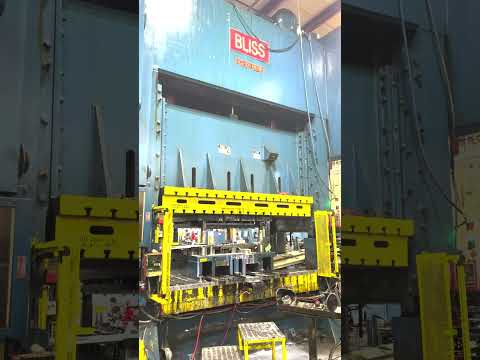

500 TON BLISS SC2-500-108-60 Straight Side Mechanical Press, Year 1989

Model: SC2-500-108

Serial #: N/A

Year: N/A

Specifications:

Tonnage 500 tons

Stroke 14 inches

Shut Height 44 inches

SPM No specs attached

Vari Speed (Yes/No) yes

Bed W 108 inches

Bed L 60 inches

Crank (Single/Double) No specs attached

Air Clutch (Yes/No) No specs attached

CNC Control No specs attached

Type of CNC Control No specs attached

Dimensions No specs attached

Request a quote

or call us at (586)-315-4796

Files
Doc Num.-9650D1306,Rev.-0,Sheet No.-1 020ad376-442b-48ec-9d28-dd99f99b58a5.TIF - Page 1-1.pdf

500 ton Bliss Straight Side Mechanical Press
Press Model No SC2-500-108-60

14" Stroke
44" Shut Height (SDAU) on Bed
36" Die Height On Bolster
12" Motorized Adjustment
108" LR x 60" FB Bed Area
108"  LR x 60" FB Slide Area
20 - 50 VSPM

Equipped with and Features:
Air Clutch And Brake
Air Counterbalances
Recirculating Lube System
8" T Slotted Bolster
T-Slotted With Knockouts
(2) Plug In Pedestal Palm Button Stations
75 HP Dynamatic Eddy Current Drive
Light Curtains Front And Back
37" Wide Windows
Floor Standing

Footprint: 148" x 102"
245" Max Overall Height

Machine can be seen under power

Request a quote
(586)-315-4796
