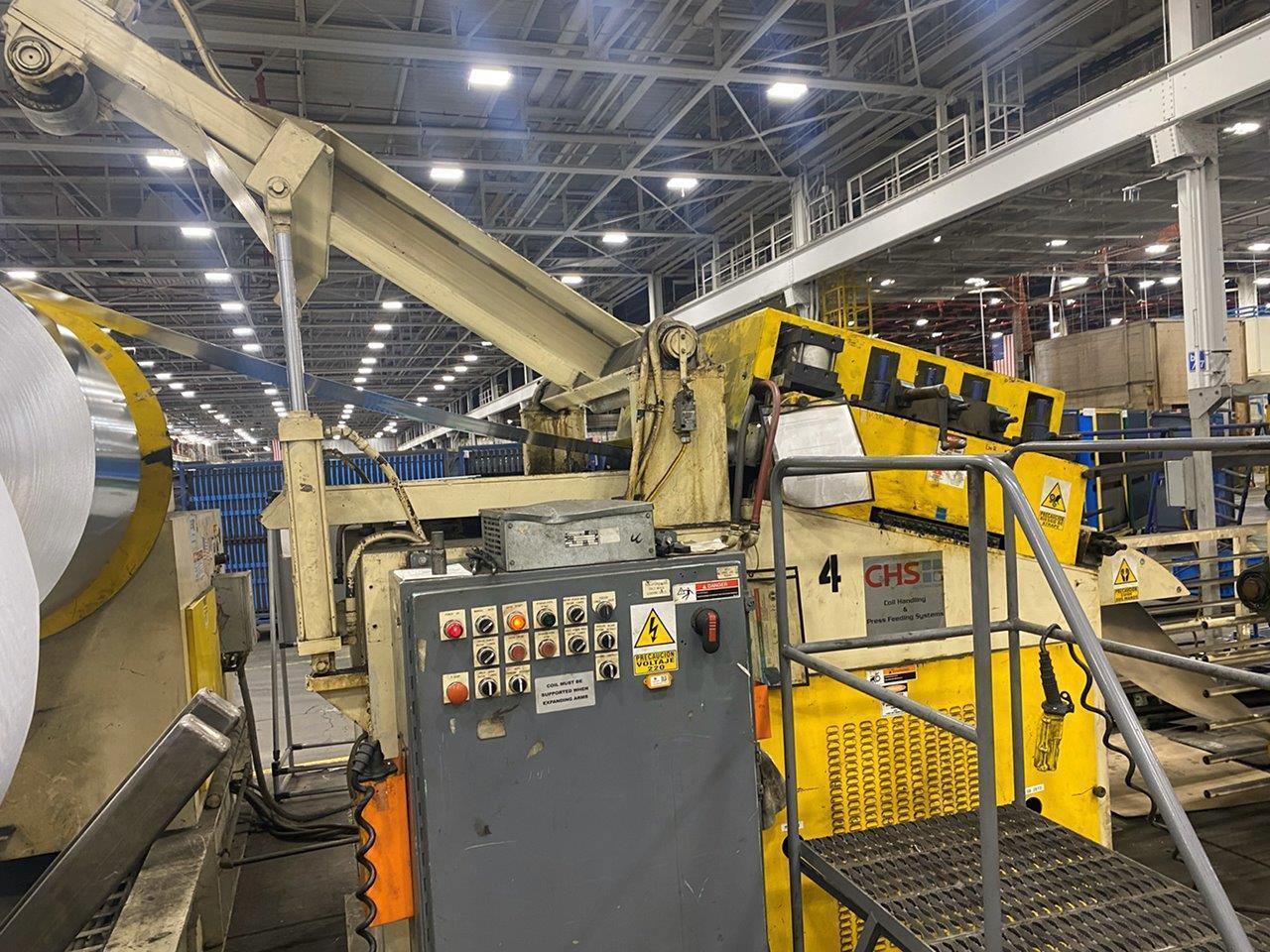

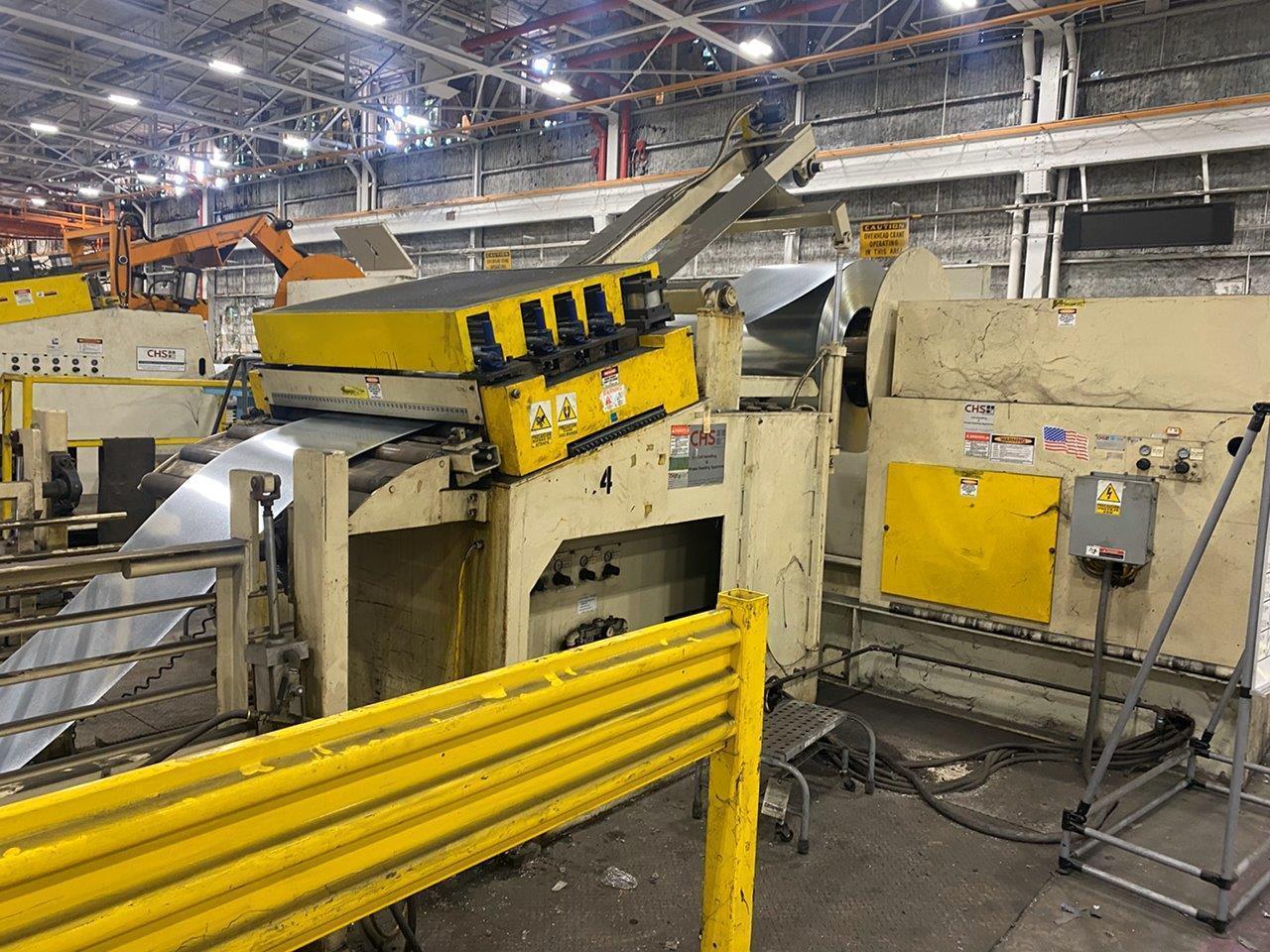

CHS Coil Reel And Straightener Combination
Coil weight capacity: 20,000 Lbs.
Coil width capacity: 48"
Stock thickness capacity: .125" x 48" Wide
Expansion range: 20" - 24"
Coil O.D. capacity: 72"

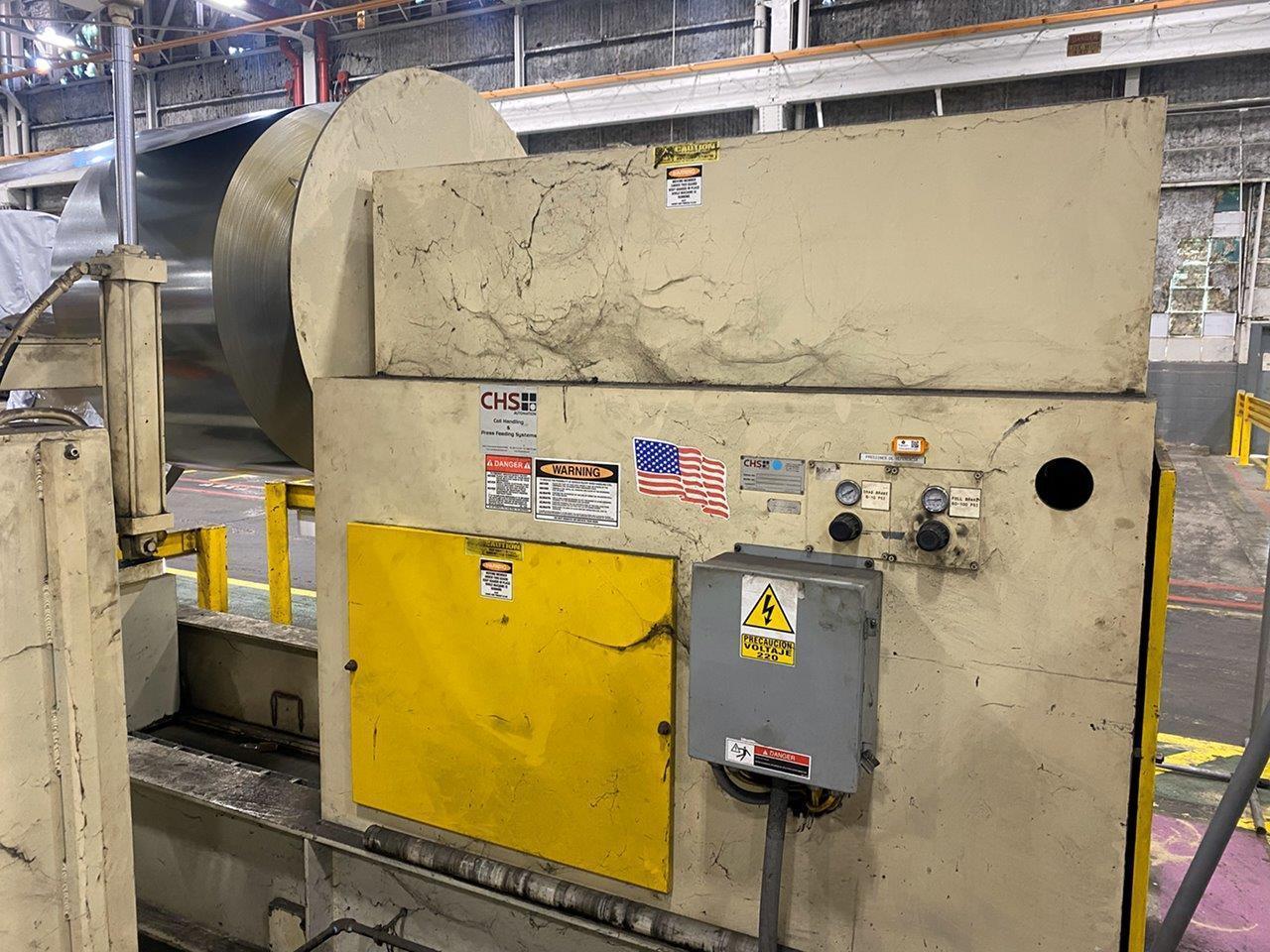

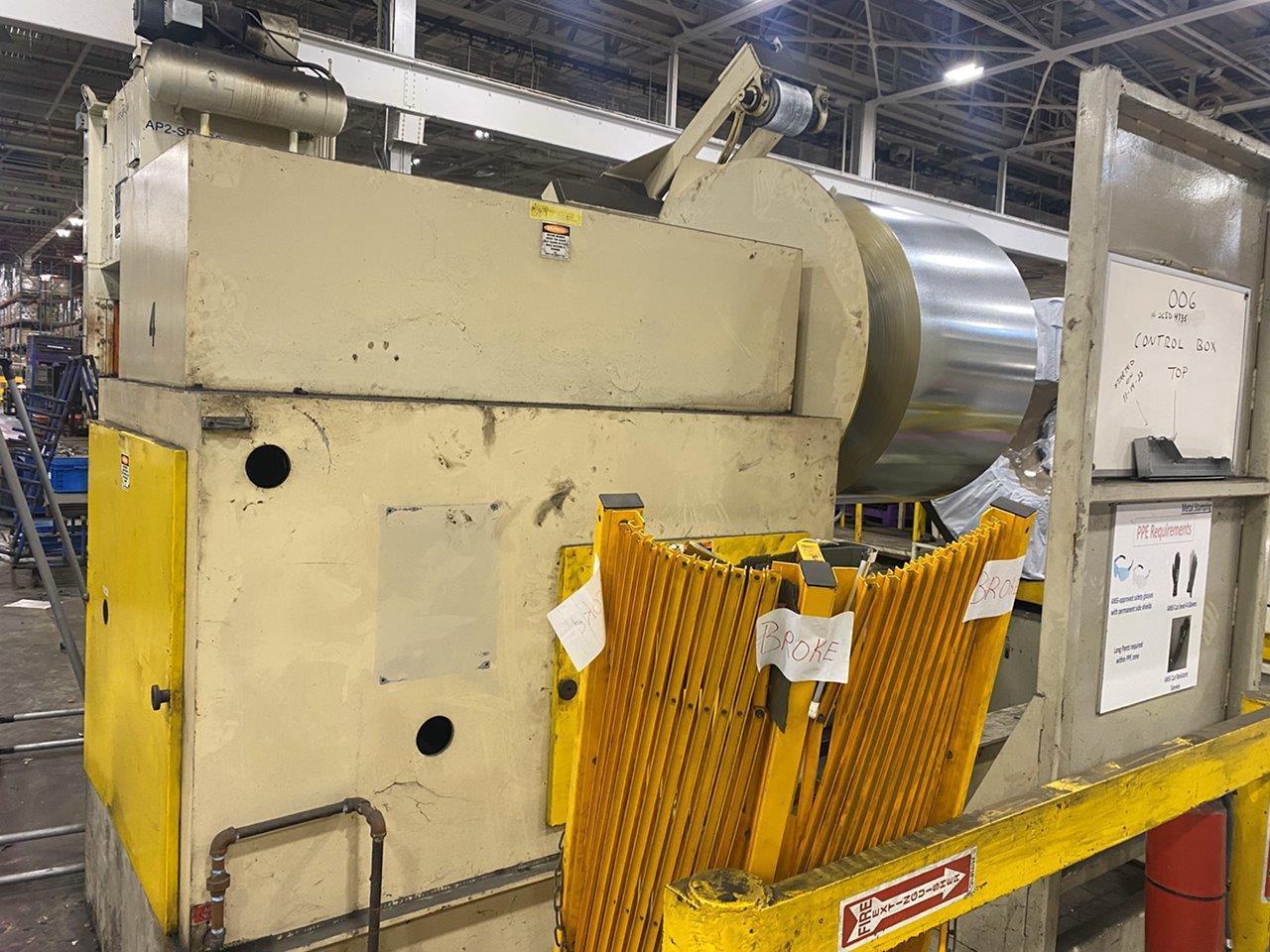

CHS Coil Reel Model No.: DR-200-48, Serial No.: 065480
Three leaf mandrel with hydraulic expansion
Air drag brake with adjustable tensioning
Threading drive for jog forward and reverse

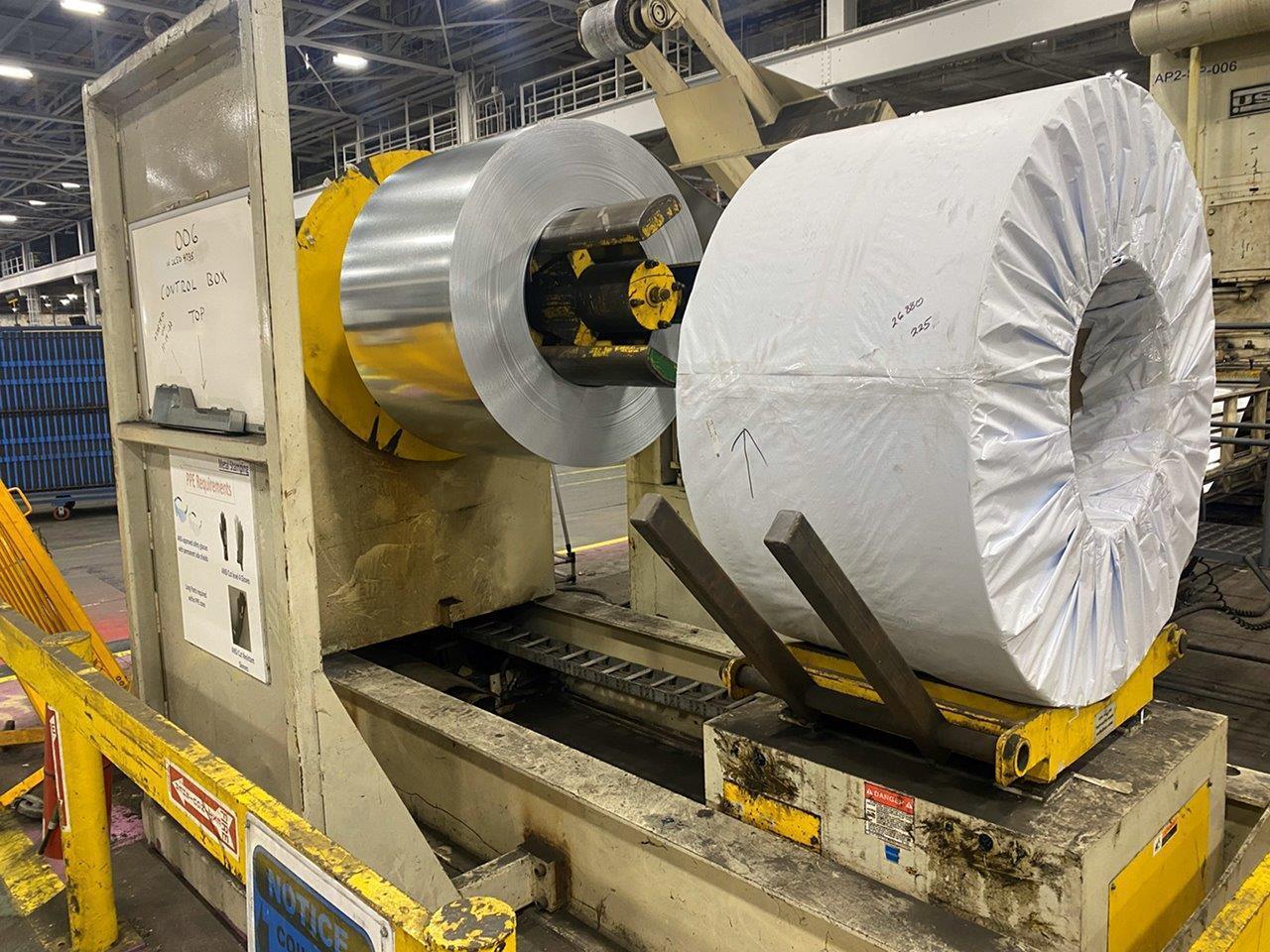

Coil load car
Powered lift and travel

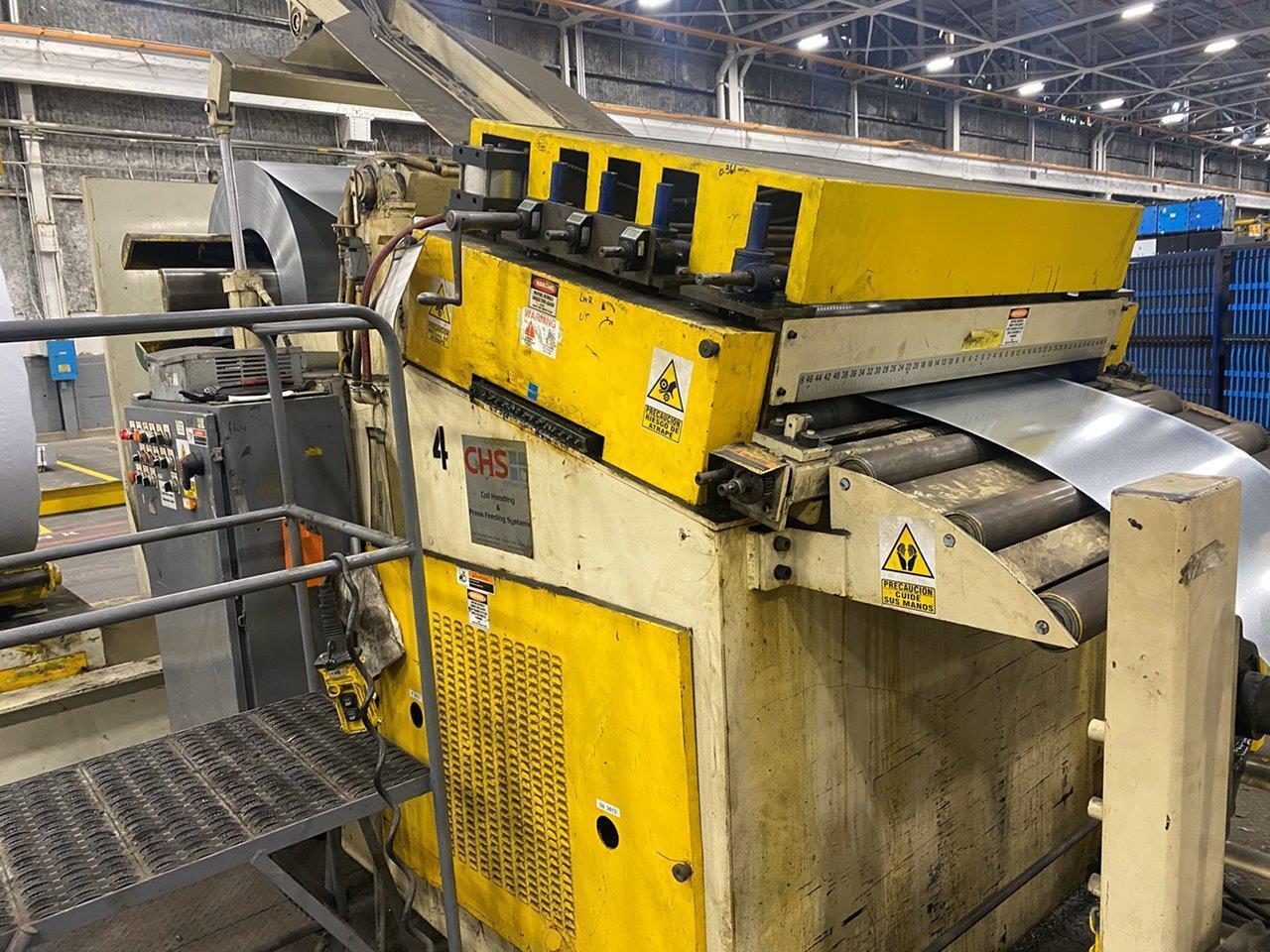

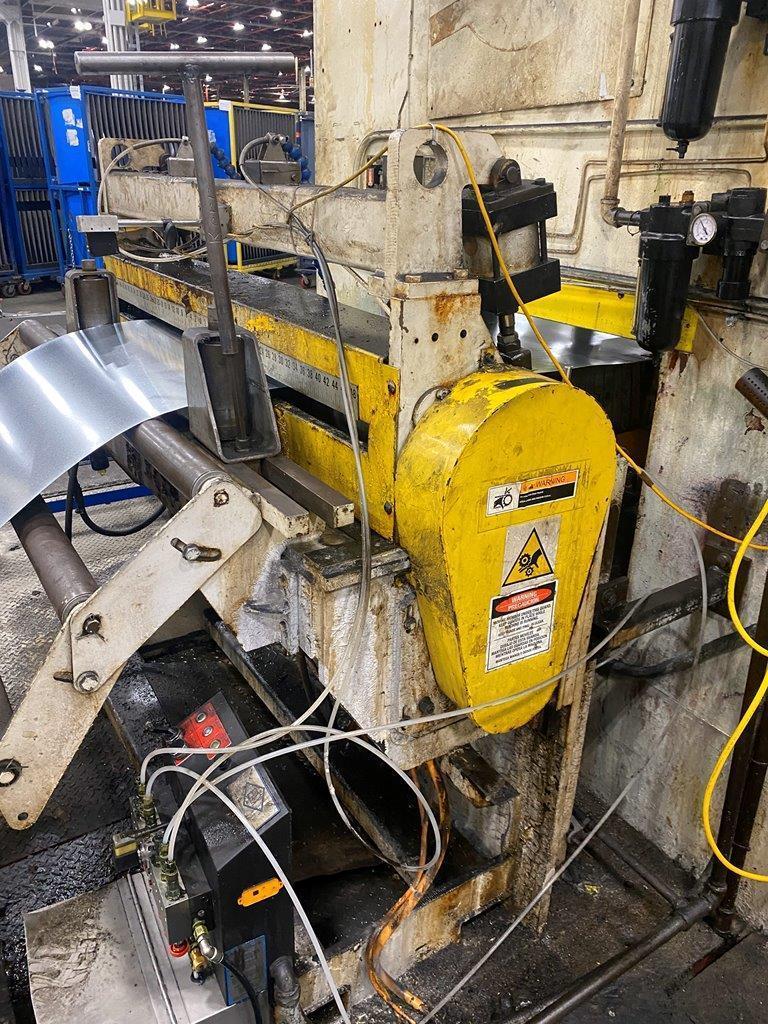

CHS Powered Straightener Model No.: PS-350-7-48, Serial No.: 065475

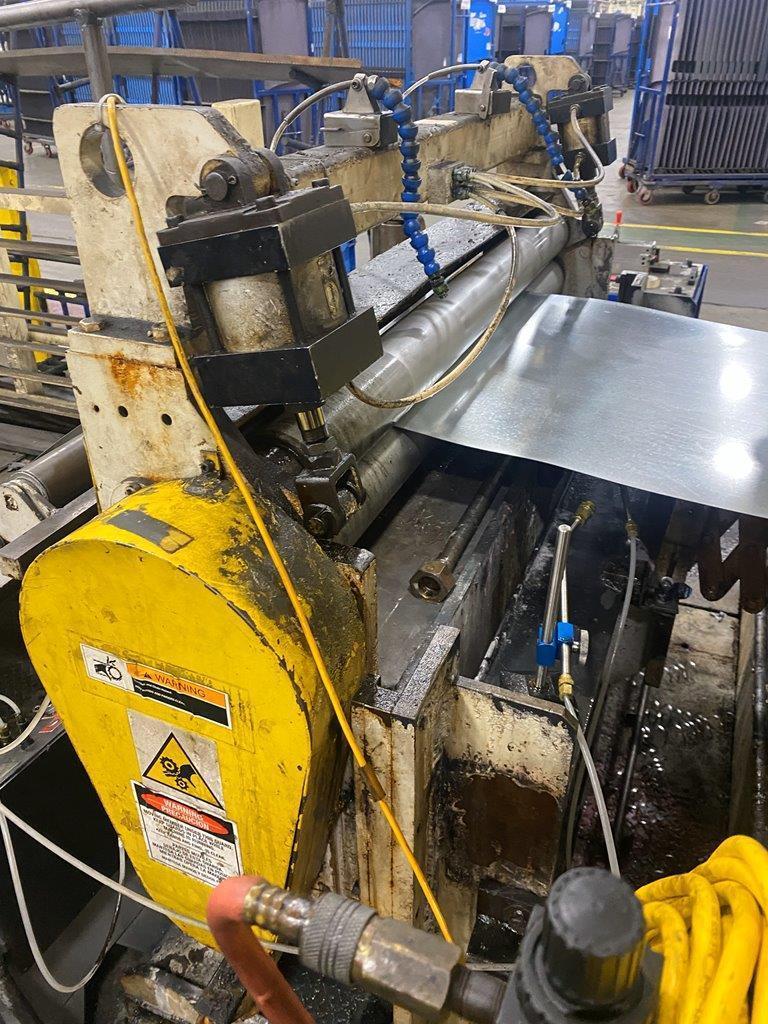

Entry and exit pinch rolls
Air operated upper pinch roll adjustments
Seven straightening rolls x 3.5" diameter
Manual upper straightening roll adjustments via screw jacks
Coil hold down arm with motorized end wheel
Stock peeler table with spade extension

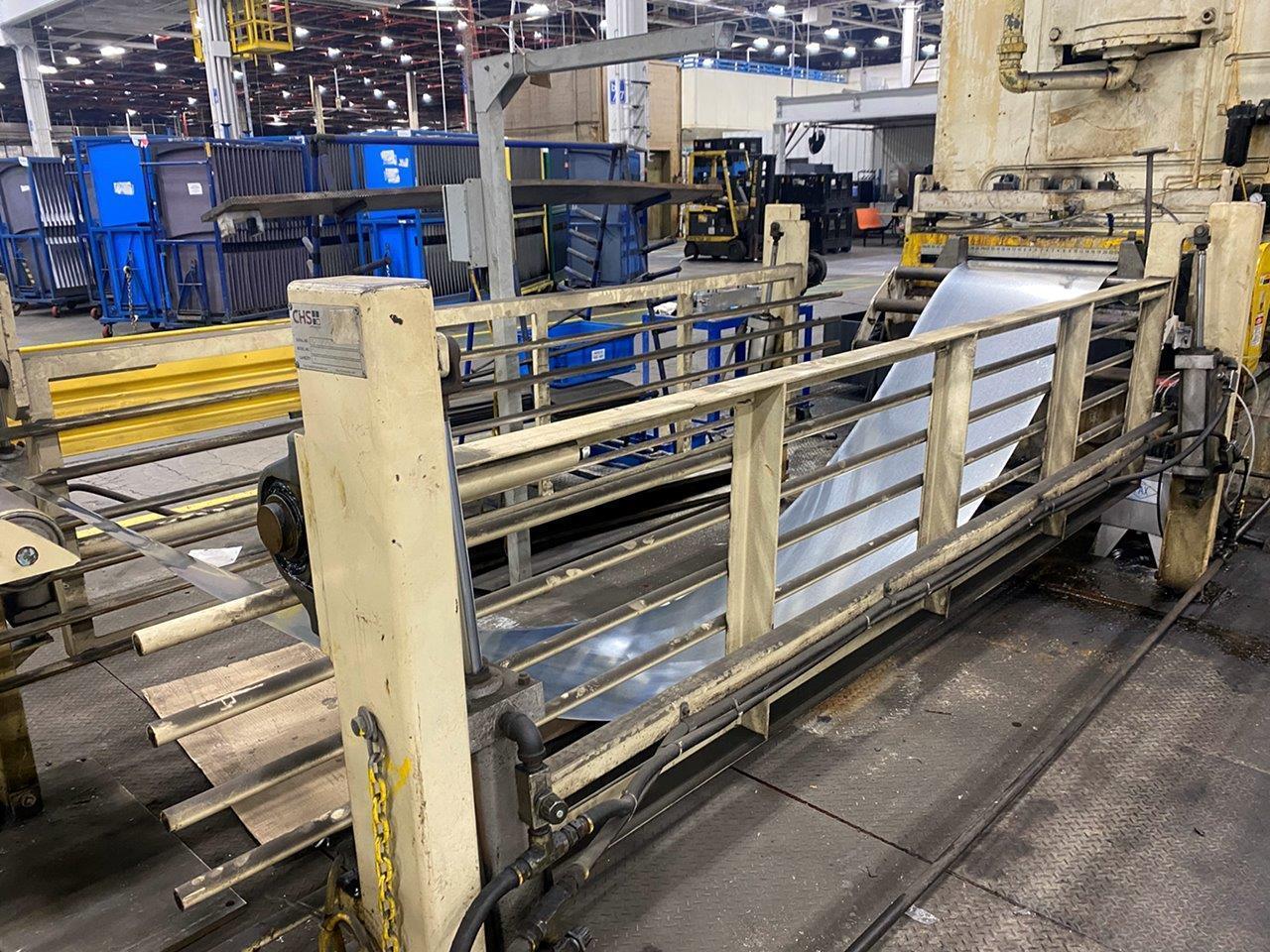

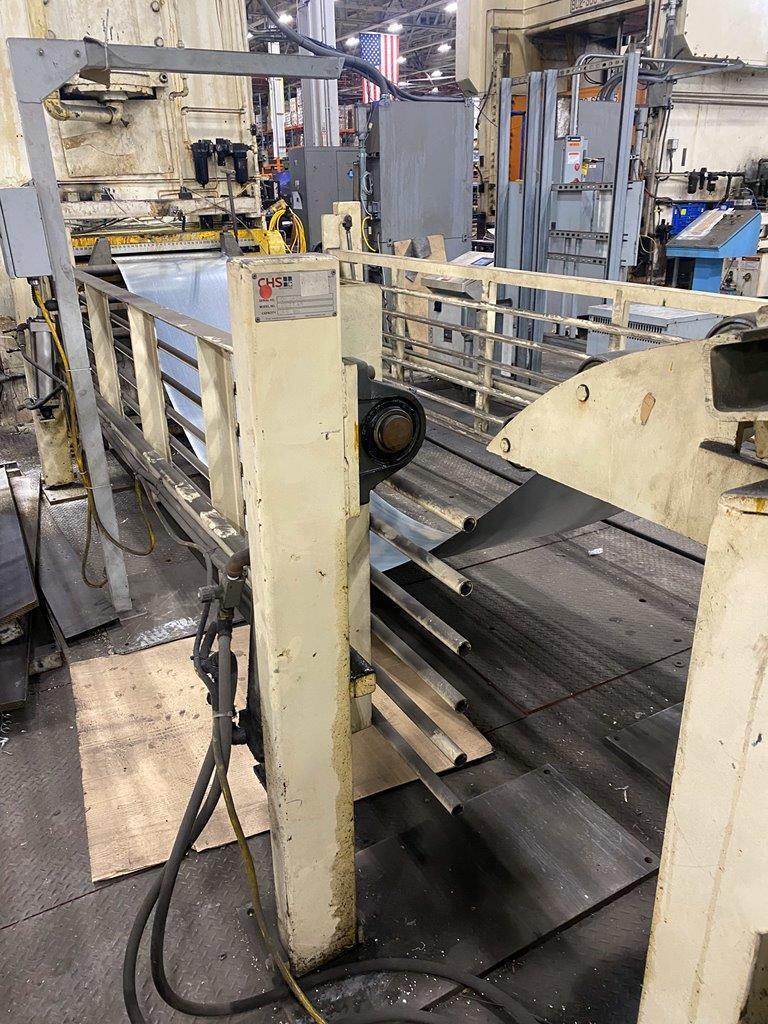

Exit cascade loop support rollers
Jog forward and reverse
Operator's control station
Auto / Run cycle
Laser loop control with remote stand

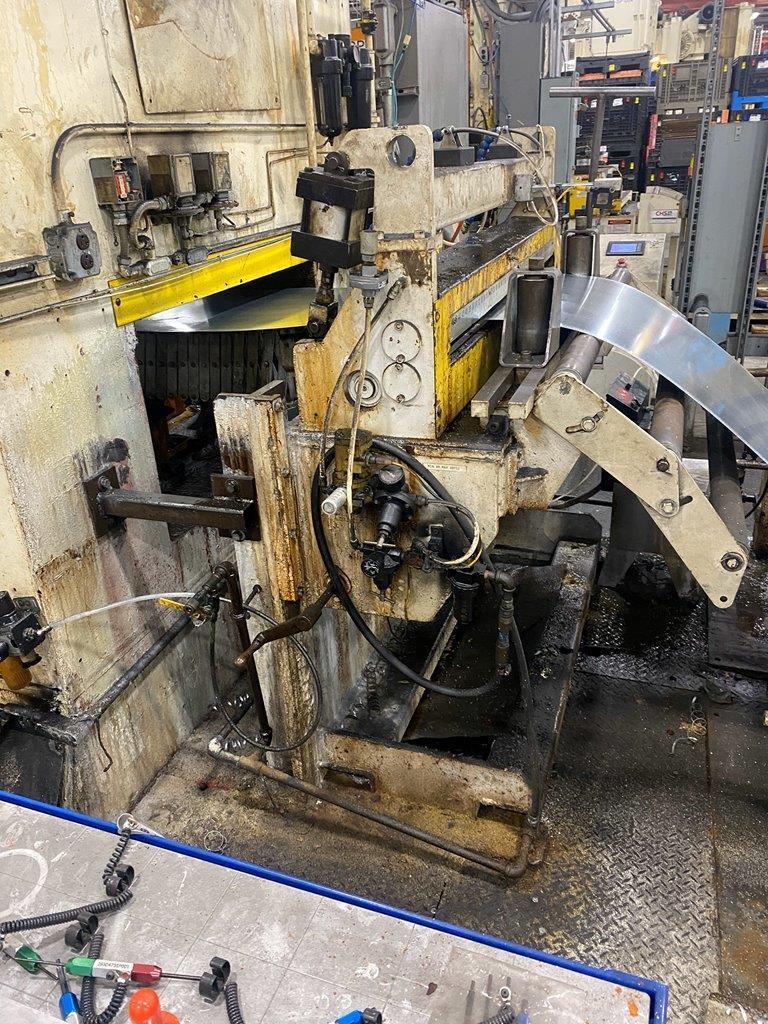

CHS Exit Thread Table Model No.: DETT-48, Serial No.: 065476
Bomb bay door design
