Stock thickness specifications:
.187" x 72" Wide
.250" x 36" Wide

COE PRESS Servo Roll Feed Model No. CPRF-672
Piloting upper feed roll
Adjustable stock width edge guides - hand crank
Cabinet base mounted with adjustable pass line
Motorized pass line

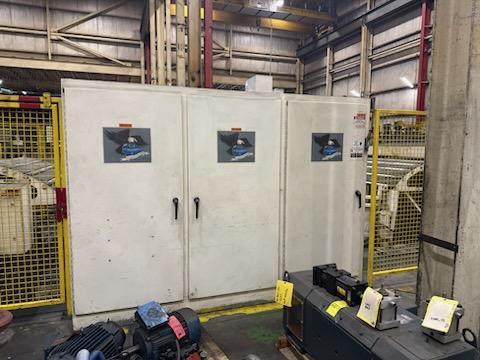

AC Servo drive and controls

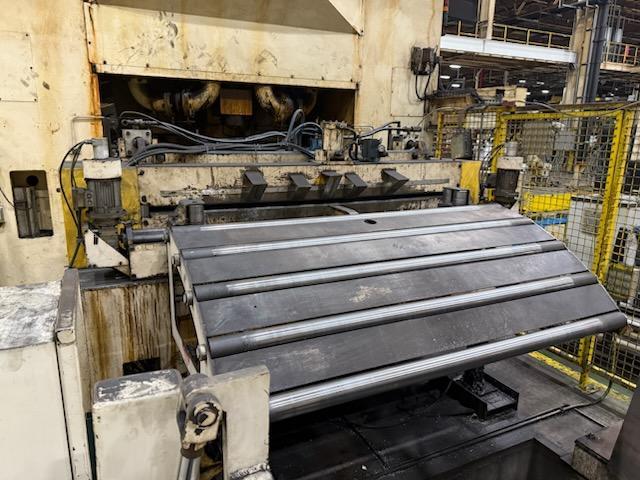

COE PRESS Exit Threading Tables Model No. CPTT-72

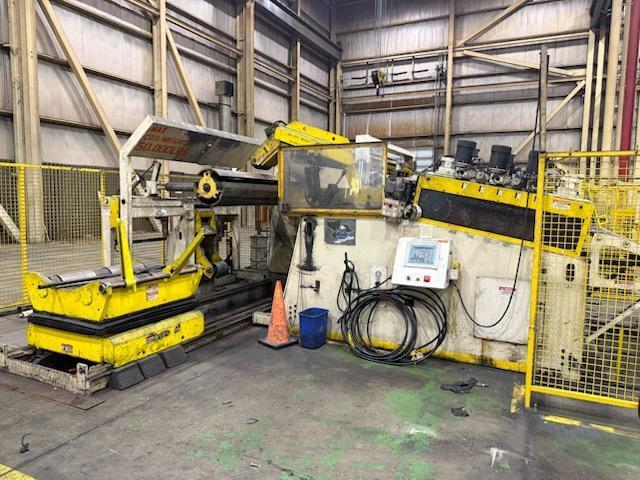

COE PRESS Powered Coil Straightener Model No. CPPS-PO-406-72
Eleven Straightening rolls x four inch diameter
Back up support rollers on straightening rolls
Entry and exit pinch rolls
Coil hold down arm
Stock peeler table with integrated debender
75 HP AC Drive

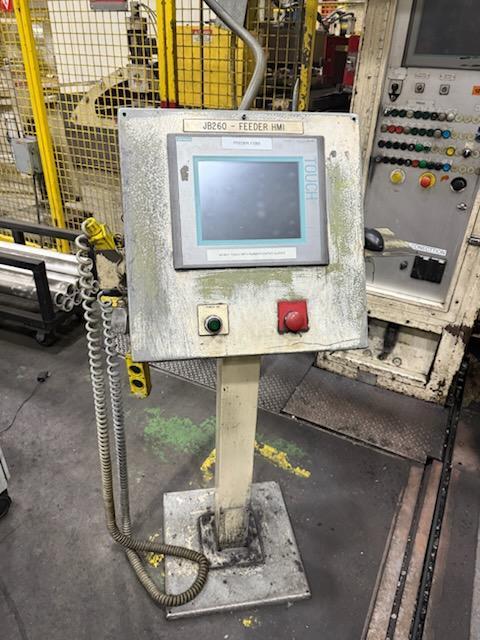

Operator's control station
Auto / Run cycle w/ loop control

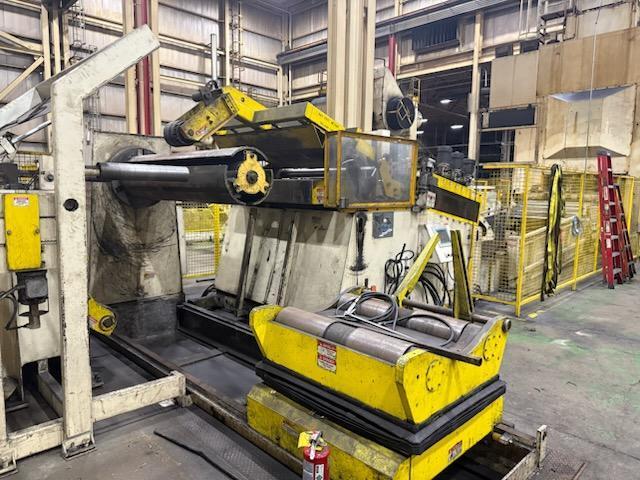

COE PRESS Coil Reel Model No. CPR-PO-600-72
Three leaf mandrel with hydraulic expansion
Expansion range: 23" - 28"
Adjustable tensioning brake
Threading drive for jog forward and reverse
Traveling coil load car with powered lift and travel
Adjustable narrow coil supports
