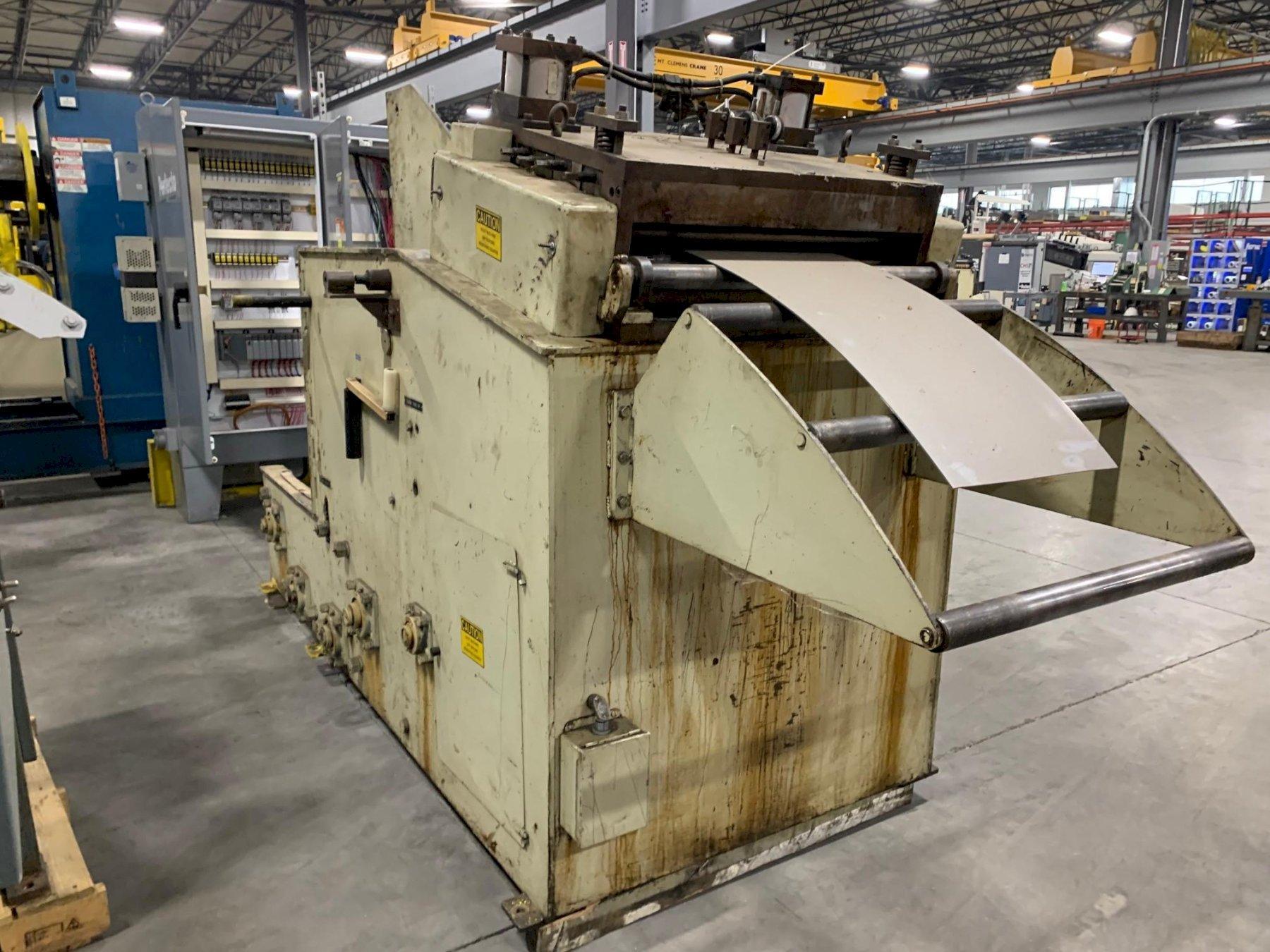

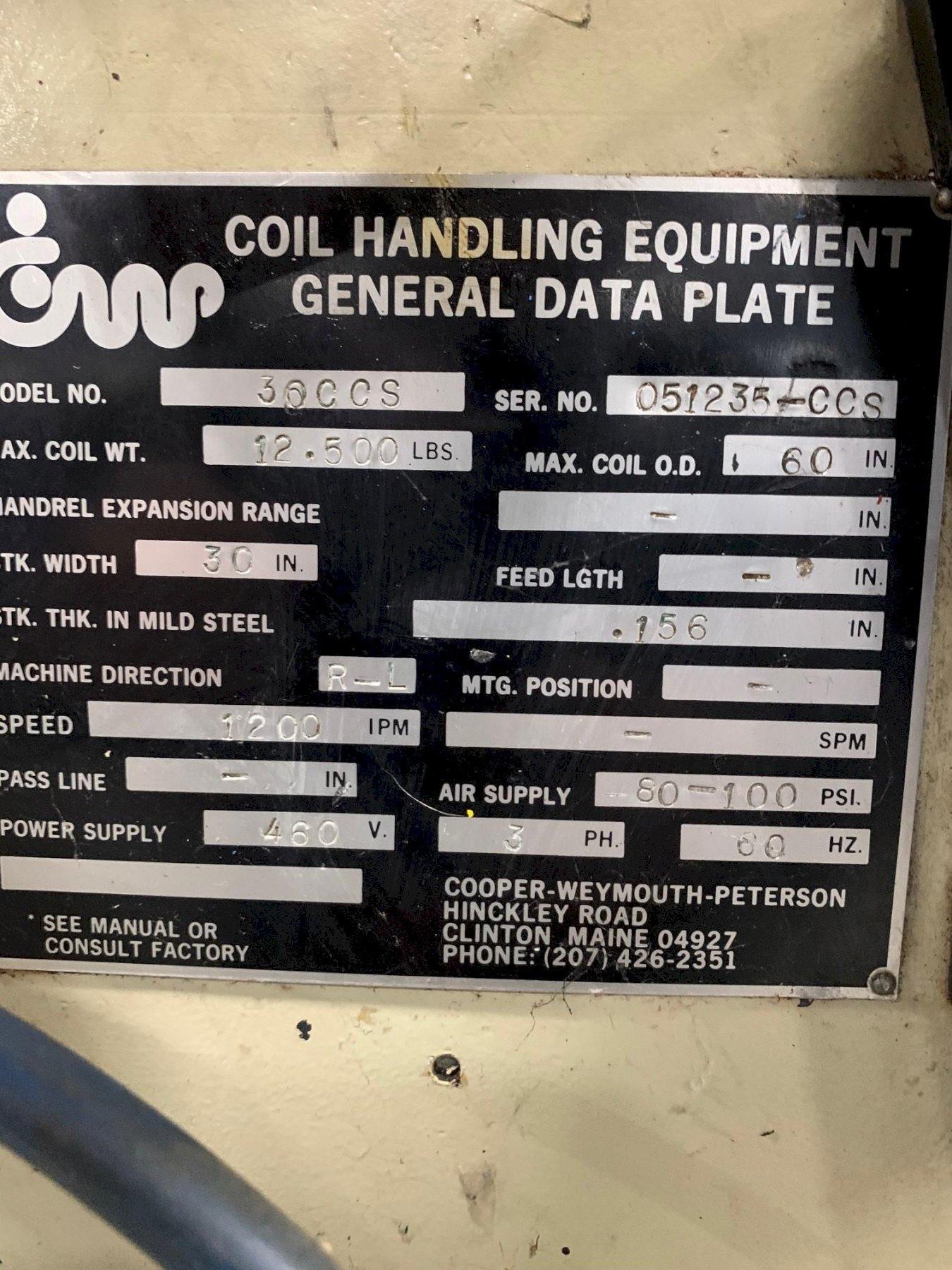

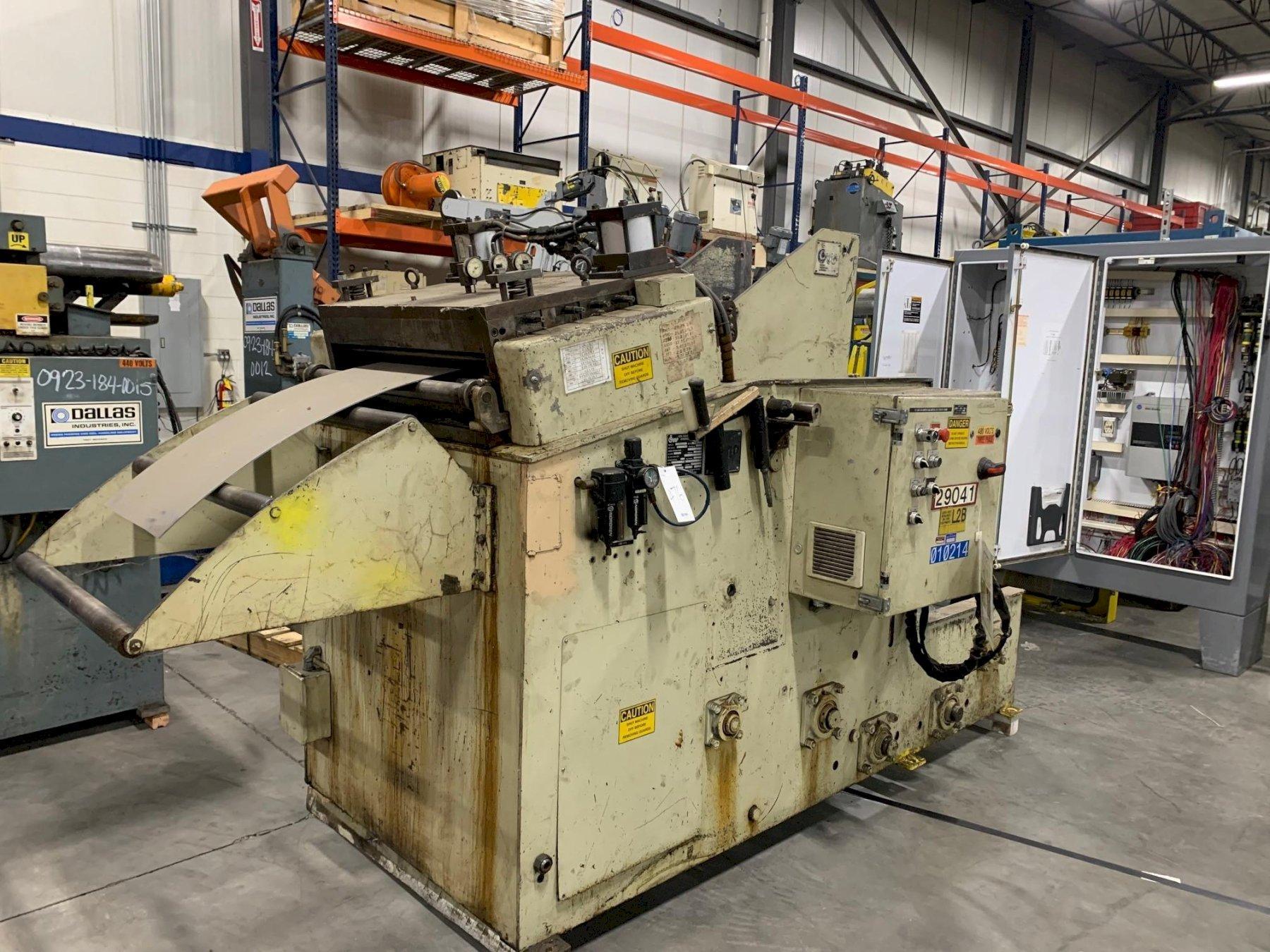

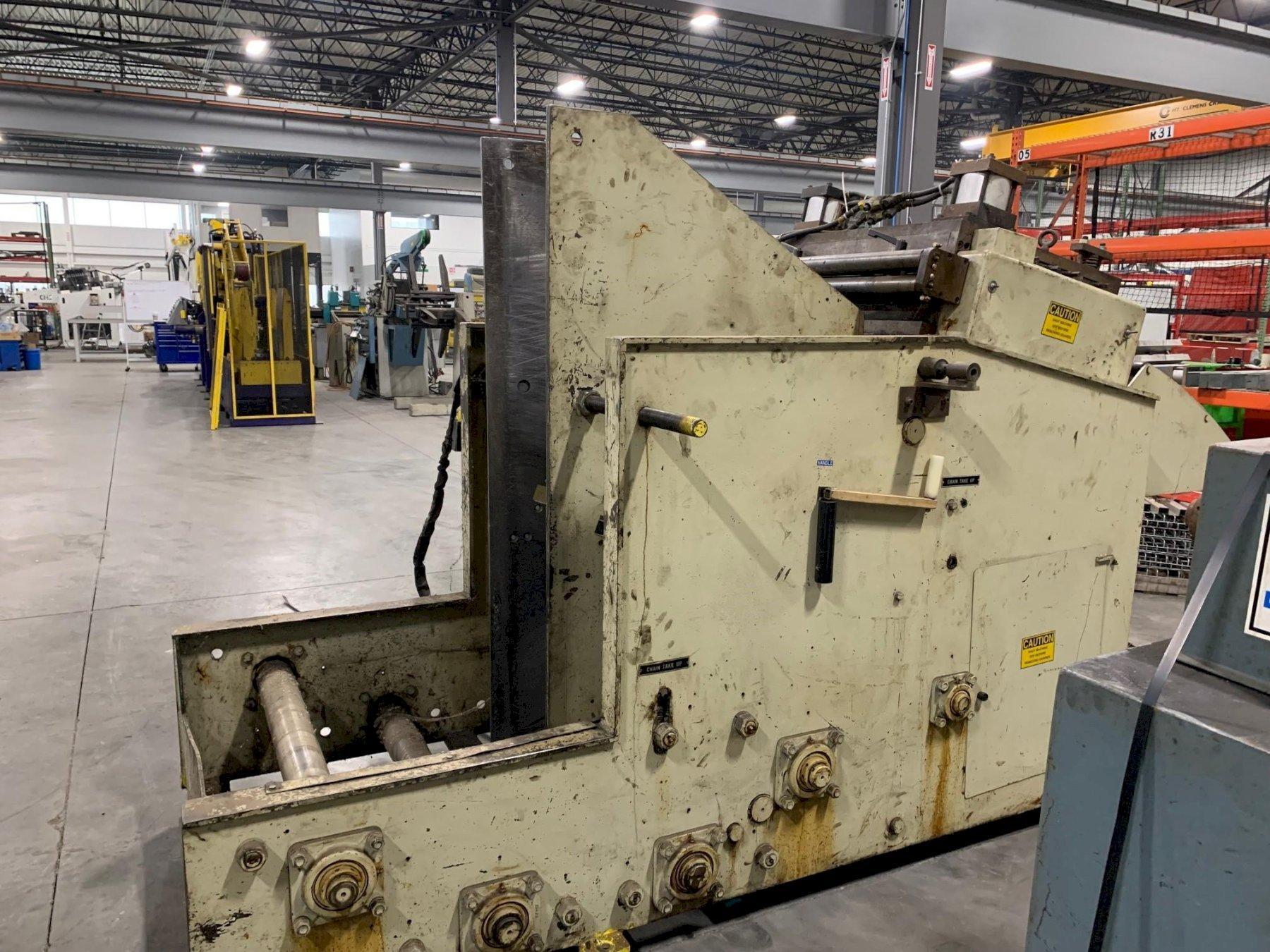

CWP Coil Cradle Straightener Specifications:
Coil weight capacity: 12,500 lb
Coil width capacity: 30"
Stock thickness capacity: .156"
Coil O.D. Capacity: 60"

CWP Coil Cradle Straightener Equipment and Features:
Coil cradle straightener entry pinch rolls with air operated adjustment
Coil cradle straightener exit pinch rolls with manual adjustment
Seven coil cradle straightening rolls
Manual individual upper coil cradle straightening roll adjustments
Inclined coil cradle straightening head
Adjustable stock width edge guides
Exit cascade loop support rollers
Adjustable coil side plates
Outboard air pressure regulators and gauges
Operator's control console
Jog forward and reverse
Auto / Run cycle
Loop control
