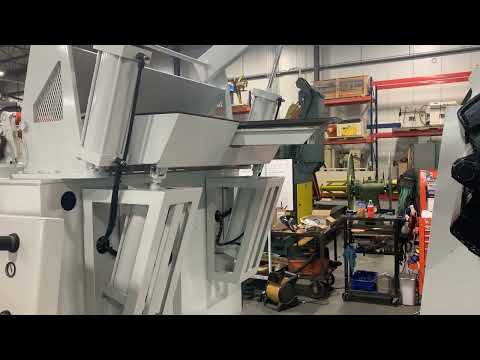

CWP Coil Reel and Powered Straightener Combination Specifications:
Coil weight capacity: 10,000 Lbs.
Coil width capacity: 36"
Stock thickness capacity: .090" x 36" Wide
Stock thickness capacity: .125" x 24" Wide
Expansion range: 17.5" - 22.5"
Coil O.D. capacity: 72"

CWP Coil Reel and Powered Straightener Combination Equipment and Features:

CWP Coil Reel Uncoiler Model No.: 5R-42, Serial No.: 053696-SR
Three leaf mandrel coil reel
Hydraulic coil reel mandrel expansion
Adjustable coil reel keeper arms
Air drag brake mounted on main coil reel spindle
Adjustable brake - pull of tension
Threading drive
Jog forward and reverse
Self contained hydraulic pump unit

CWP Powered Coil Straightener Model No.: 42D11, Serial No.: 053696-STR
Entry and exit powered coil straightener pinch rolls x 4.20" diameter
Air operated entry upper powered coil straightener pinch roll adjustment
Air operated exit upper powered coil straightener pinch roll adjustment
Eleven coil straightening rolls x 2.80" diameter
Manual individual upper coil straightening roll adjustments
Coil hold down arm, peeler de-bender station
Motorized coil hold down arm end wheel
Stock peeler table with extension
Stock end debender
Heavy duty hand crank edge guides
NEW AC VFD Control System
Exit cascade loop support rollers
Variable speed powered coil straightener drive system
New Laser Loop control

New Exit Threading Table Model ETT-36
Bomb bay door design

Perfecto Servo Roll Feed 36" Wide
Four inch upper and lower feed rolls
Piloting upper roll
Cabinet base mounted
All new AC Servo drive and controls

IN STOCK READY TO SHIP

Reconditioned, painted and 100% cycling
Warranty: Ninety days parts and labor
Terms: 40% Deposit, net prepaid
