DALLAS Double End Conventional Complete Coil Feed Line Specifications:
Coil weight capacity: 6,000Lbs. (per side)
Coil width capacity: 18"
Stock thickness capacity: .125" x 18" Wide
Stock thickness capacity: .250" x 06" Wide
Expansion range: 16"-21"
Coil O.D. capacity: 72"

DALLAS Double End Conventional Complete Coil Feed Line Equipment and Features:

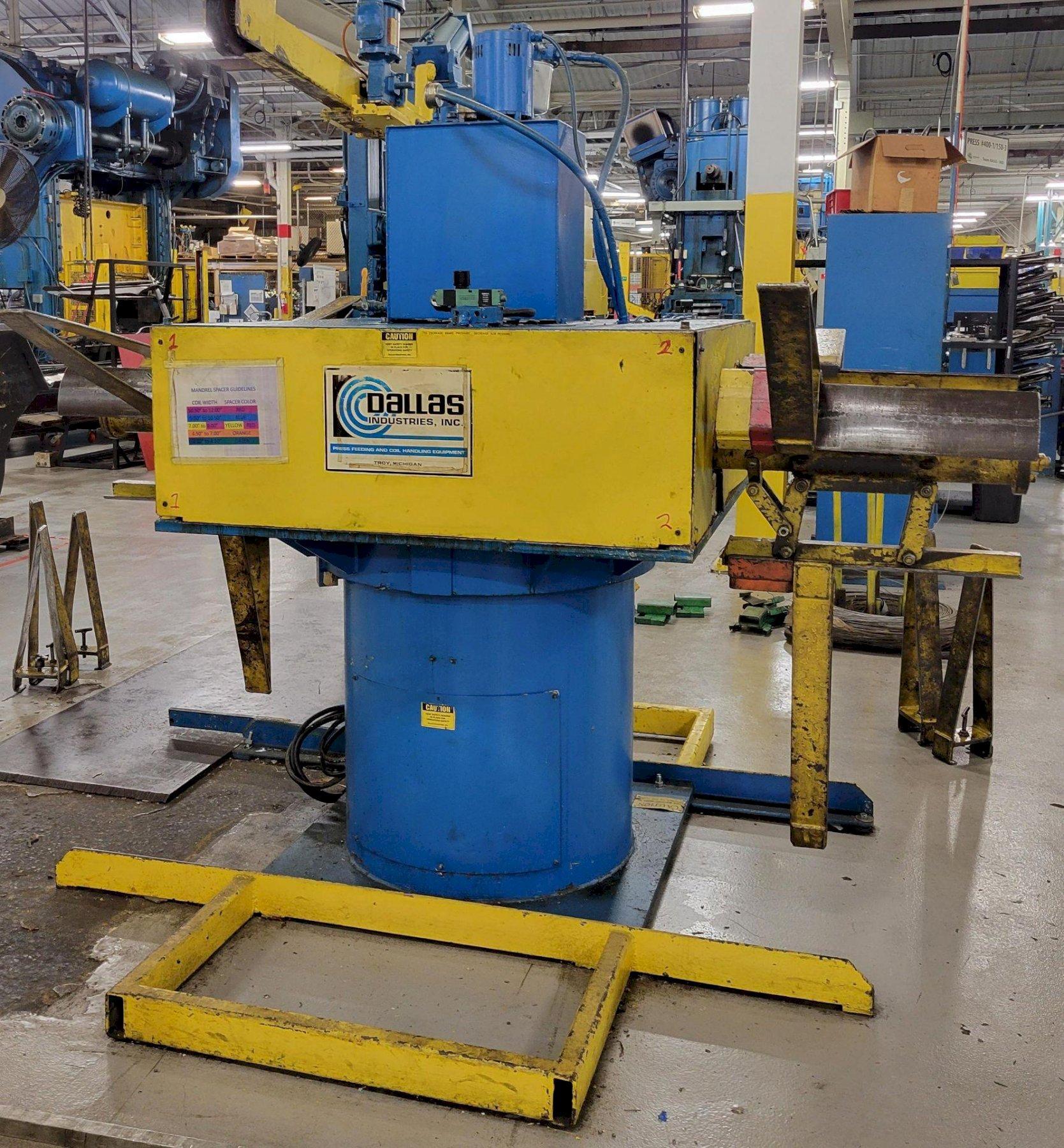

DALLAS Double End Coil Reel Uncoiler Model No.: DDCR-6000-18, Serial No.: 20844
Three leaf mandrel coil reel (per side)
Adjustable coil keeper arms
Hydraulic mandrel expansion
Arbor rotation locking pin (foot pedal release)
Pneumatic drag brakes mounted on main spindle
Adjustable tensioning

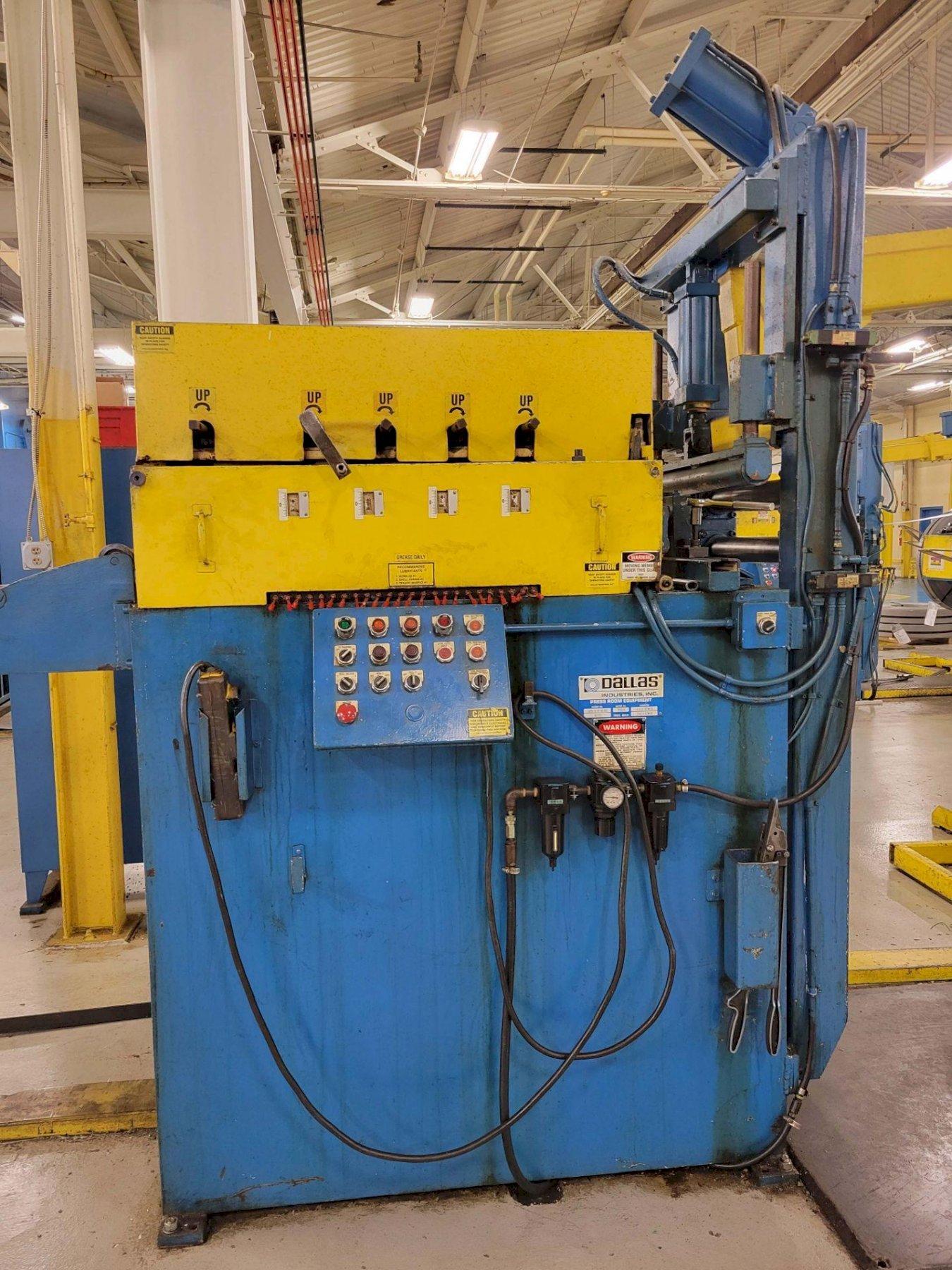

DALLAS Powered Coil Straightener Model No.: DPS-3-9-18, Serial No.: 20847
Entry and exit powered coil straightener pinch rolls
Air operated entry powered coil straightener pinch roll adjustment
Manual exit powered coil straightener pinch roll adjustment
Nine coil straightening rolls
Individual upper straightening roll adjustments
Entry stock width edge guides
Air operated coil hold down arm with motorized end wheel
Air operated coil breaker / de-bender
Centralized lubrication points
Exit cascade loop support rollers
Remote pendant control for jog forward and reverse
Variable speed powered coil straightener drive system
Auto / Run cycle
Loop control

DALLAS Servo Roll Feed Press Feed Model No.: DRF-418
Four inch diameter upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustments / pilot
Solenoid controlled pilot release
Centralized lubrication points
Cabinet base mounted servo roll feed
AC servo roll feed drive and controls
Free standing sloped servo roll feed control console
Remote pendant control for Jog forward and reverse
Fused disconnect
