Stock #: 5485B

Dallas Industries Coil Feed Line 20,000 Lbs. x 72" Wide

Model: DJR-20,000# x 72 / DPS-4-1/4

Serial #: N/A

Year: N/A

Specifications:

Coil weight capacity: 20000 pounds

Stock Width Capacity 72 inches

Max Stock Thickness Capacity At Full Width .060 inches

Minimum expansion range: 20 inches

Maximum expansion range: 24 inches

Coil O.D. capacity: 72 inches

Request a quote

or call us at (586)-315-4796

Dallas Industries Coil Feed Line 20,000 Lbs. x 72" Wide

Stock thickness capacity: .060" x 72" Wide
Stock thickness capacity: .125" x 48" Wide

Equipped With:
Dallas Coil Reel Model No. DJR-20,000# x 72
Three leaf mandrel with hydraulic expansion
Adjustable coil keeper arms
Jog drive for threading

Dallas Coil Load Car Model No. LC-20,000# x 72
Powered lift and travel

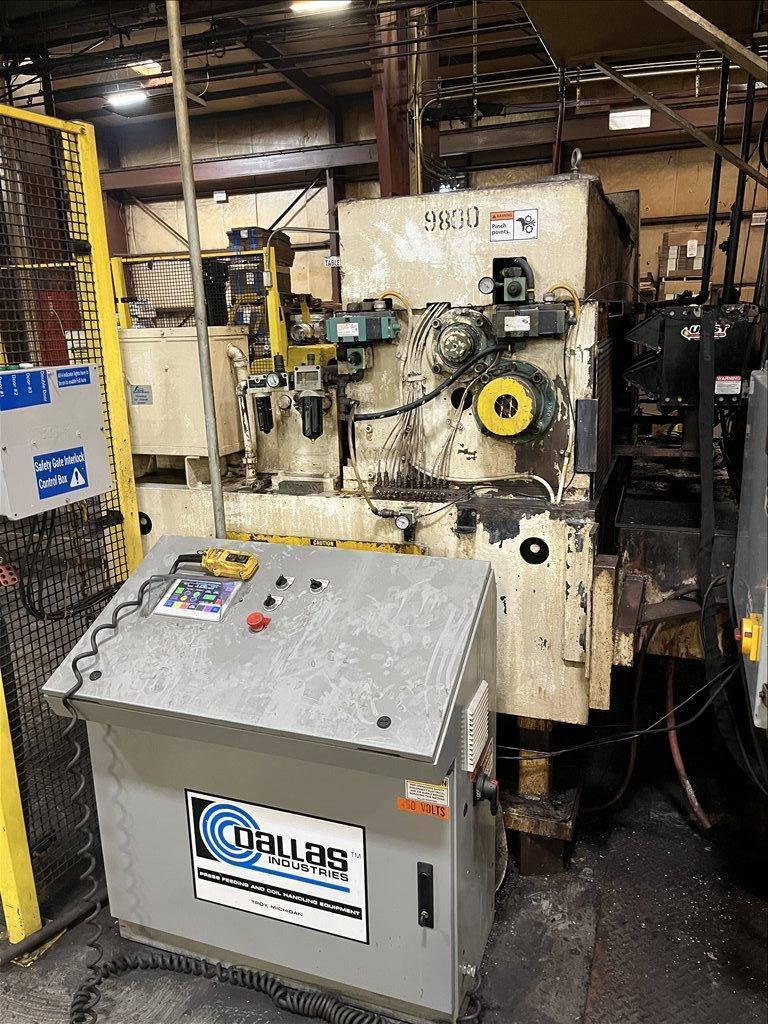

Dallas Powered Straightener Model No. DPS-4-1/4-72
Seven straightening rolls x 4.25" diameter
Entry and exit pinch rolls
Coil hold down arm and stock peeler / threading station
Operator's controls
Loop control

Dallas Servo Roll Feed Model NO. DRF-672
Piloting upper feed roll
Cabinet base with adjustable pass line
Servo controls upgraded by Dallas in 2015
