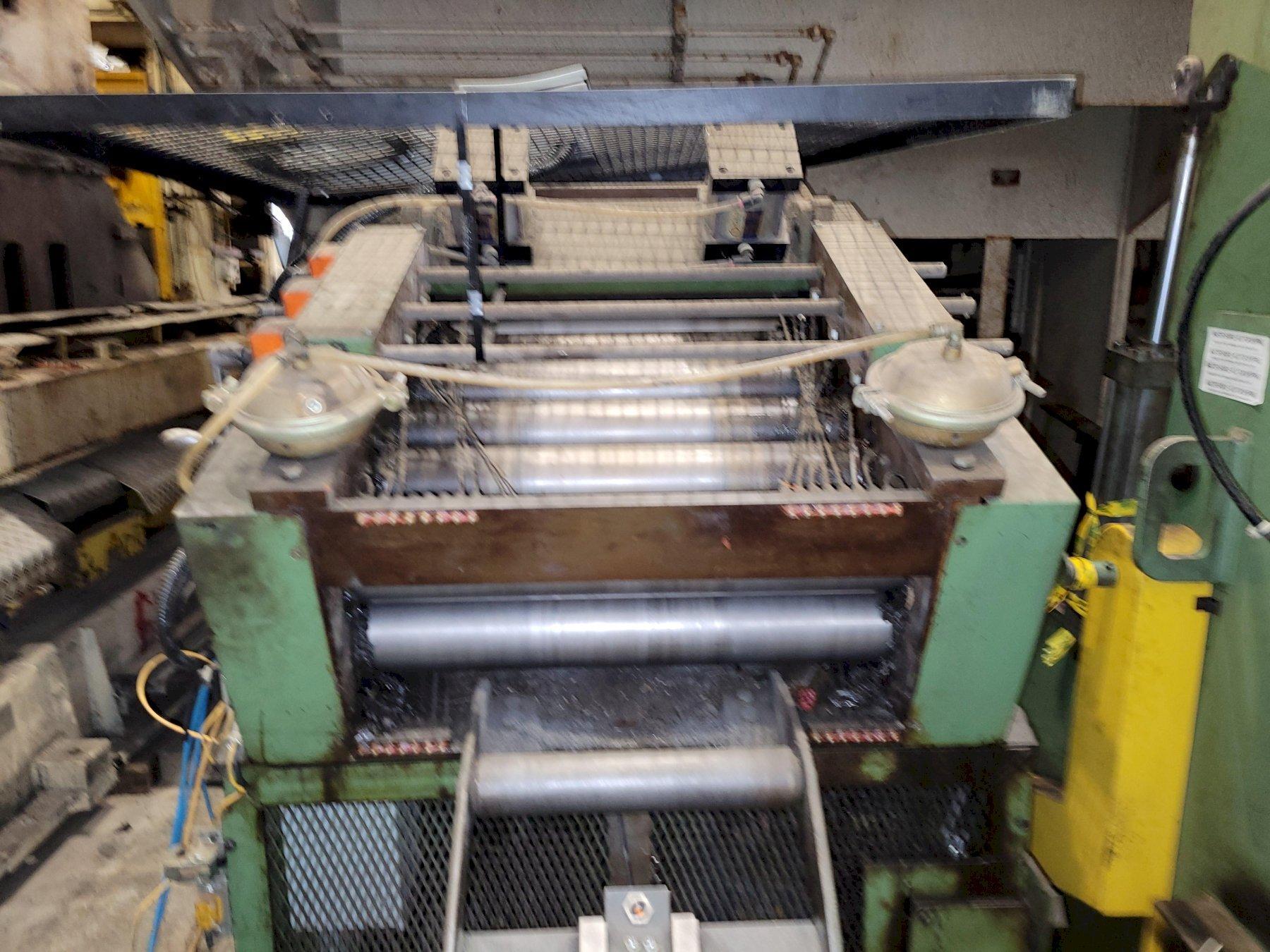

MECON Coil Cradle - Straightener Combination 10,000 Lbs. x 24" Wide

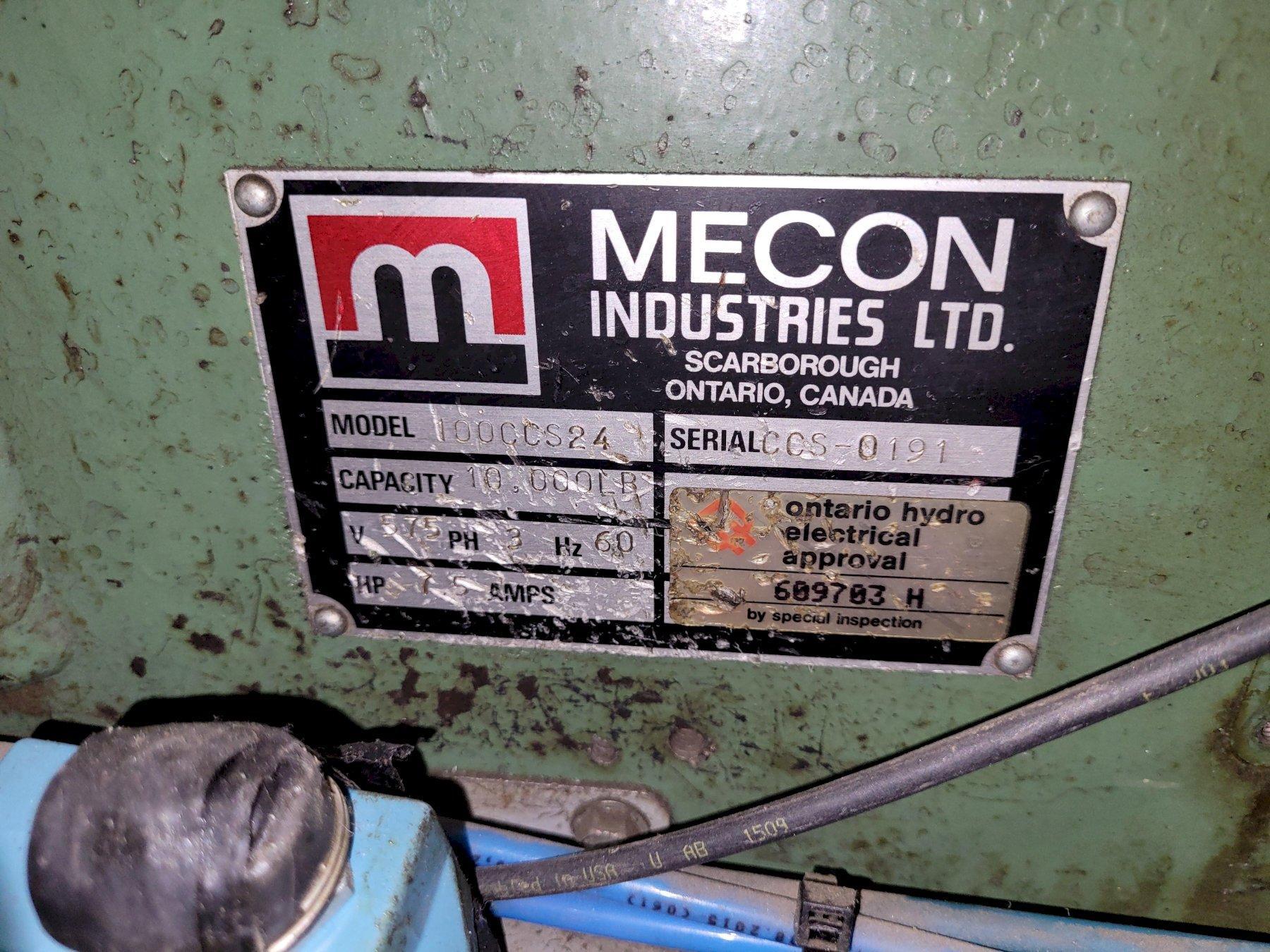

Model: 100CCS-24

Serial #: CCS0191

Year: N/A

Specifications:

Coil weight capacity: 10000 pounds

Stock Width Capacity 24 inches

Max Stock Thickness Capacity At Full Width No specs attached inches

Coil O.D. capacity: No specs attached inches

Request a quote

or call us at (586)-315-4796

MECON Coil Cradle - Straightener Combination 10,000 Lbs. x 24" Wide

Specifications:
Coil weight capacity: 10,000 lb
Coil width capacity: 24"
Stock thickness capacity at 24" Wide: .250"

Equipped With:
Entry and exit pinch rolls (air operated adjustment)
Seven straightening rolls x 4" diameter
Individual upper straightening roll adjustments
Adjustable stock width edge guides
Self contained hydraulic unit
Adjustable coil side plates
Variable speed drive
Operator's controls
Jog forward and reverse
Auto / Run cycle
Loop control
