Rowe Conventional Coil Feed Line Specifications:
Coil weight capacity: 12,000 Lbs.
Coil width capacity: 40"
Stock thickness capacity: .110" x 40" Wide
Stock thickness capacity: .175" x 20" Wide
Expansion range: 20"- 24" (To be confirmed)
Coil OD capacity: 60"

Rowe Conventional Coil Feed Line Equipment and Features:

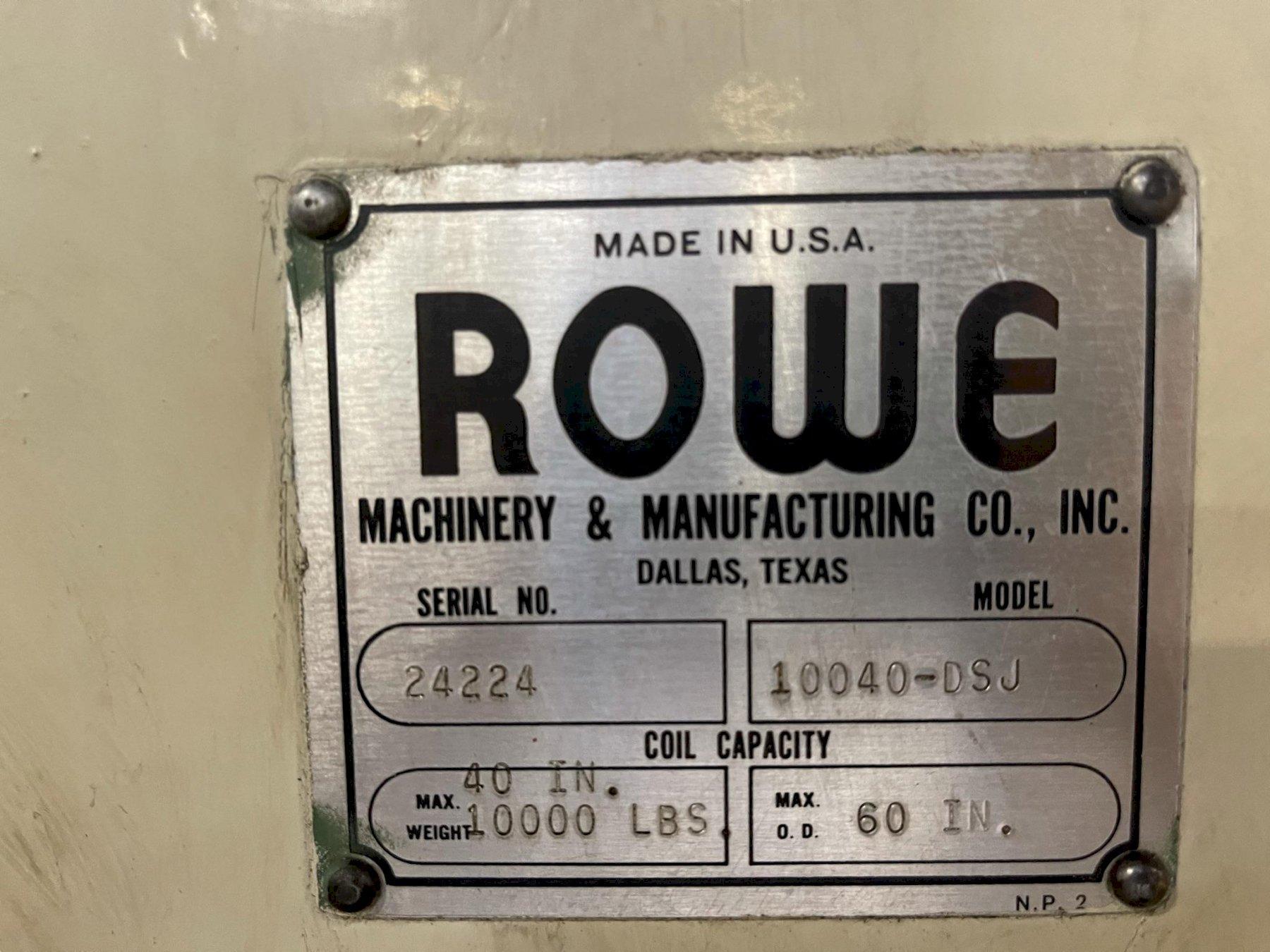

Rowe Coil Reel Uncoiler Model No.: 10040-DSJ, Serial No.: 24224
Four Leaf Mandrel coil reel
Powered coil reel mandrel expansion
Coil reel keeper arms
Threading drive for jog forward and reverse
Drag Brake mounted on main coil reel spindle
Adjustable tensioning
Coil hold down arm

Traveling Coil Load Car
Powered lift and travel
Floor mounted track

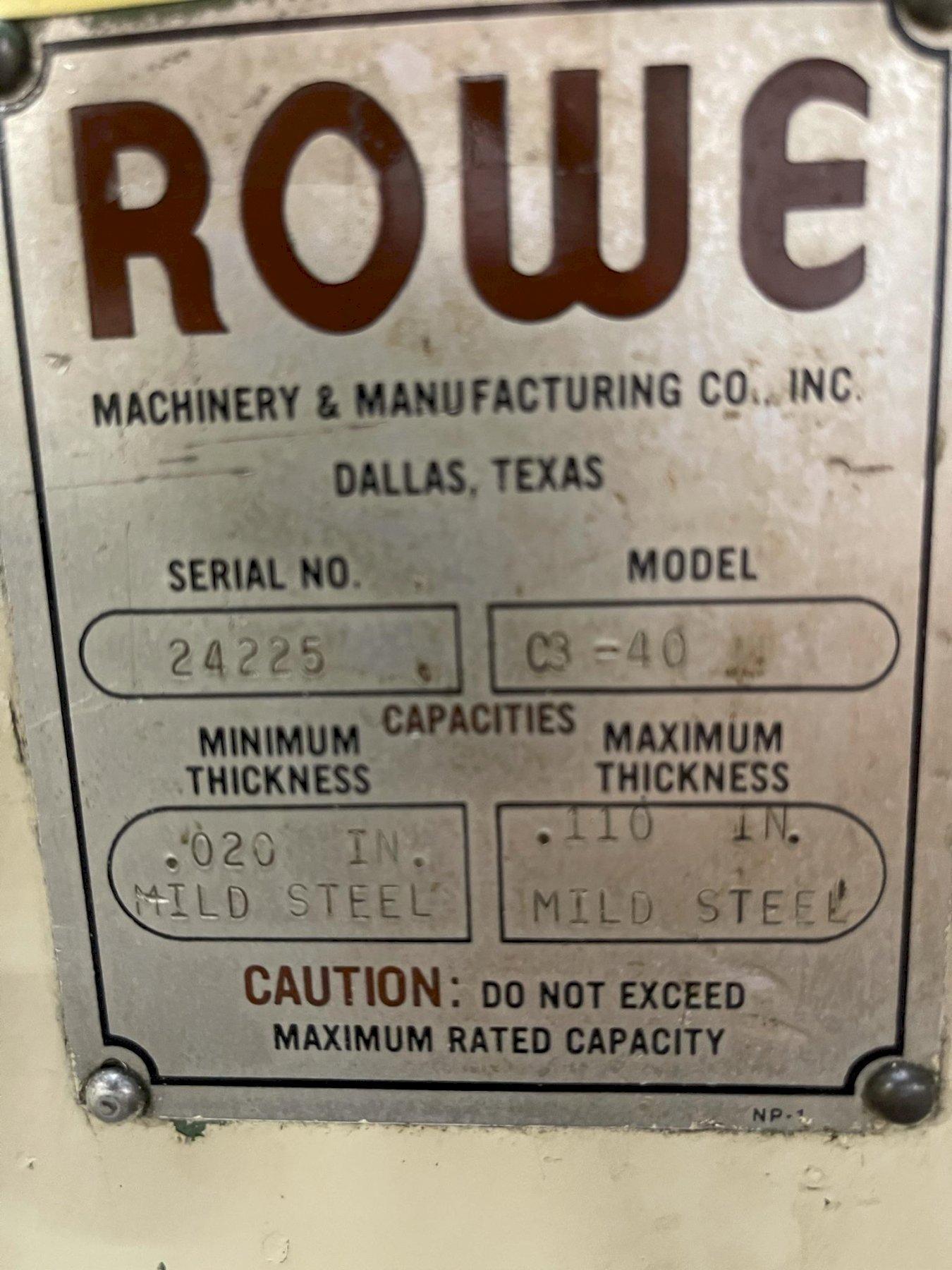

Rowe Powered Coil Straightener Model No.: C340, Serial No.: 24225
Seven coil straightener rolls x 3.5" diameter
Bank style upper coil straightener roll adjustments
Dual upper coil straightener adjustment handles
Entry and exit coil straightener pinch rolls x 3.5" diameter
Air operated upper coil straightener pinch roll adjustments
Adjustable entry stock width edge guides
Inclined coil straightener cabinet
Cascade loop support rollers
Variable speed payout
Operator's control console
Jog forward and reverse
Auto/Run cycle
240/480 Volt
Loop control

Rowe Dual Exit Threading Tables
Bomb bay door design
Pneumatic operated raise and lower
Hand valve actuated

Rowe Servo Roll Feed Model No.: PM-FDC-053-240, Serial No.: 27107
Upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll lift and pilot
Stock width edge guides
Free standing base
Adjustable pass line height
AC Servo roll feed drive and controls package
Cascade loop support rollers
