Stock #: 026113

Used Minster E2-600-84

Model: E2-600-84 x 48

Serial #: 26113

Year: 1988

Specifications:

Tonnage 600 tons

Stroke 12.00 inches

Shut Height 25.00 inches

SPM 060

Vari Speed (Yes/No) yes

Bed W 48 inches

Bed L 84 inches

Crank (Single/Double) double

Air Clutch (Yes/No) yes

CNC Control No specs attached

Type of CNC Control No specs attached

Dimensions 245T x 163W x 108D

Weight 165000 pounds

Request a quote

or call us at (586)-315-4796

Files
E2-600-84-26613.pdf

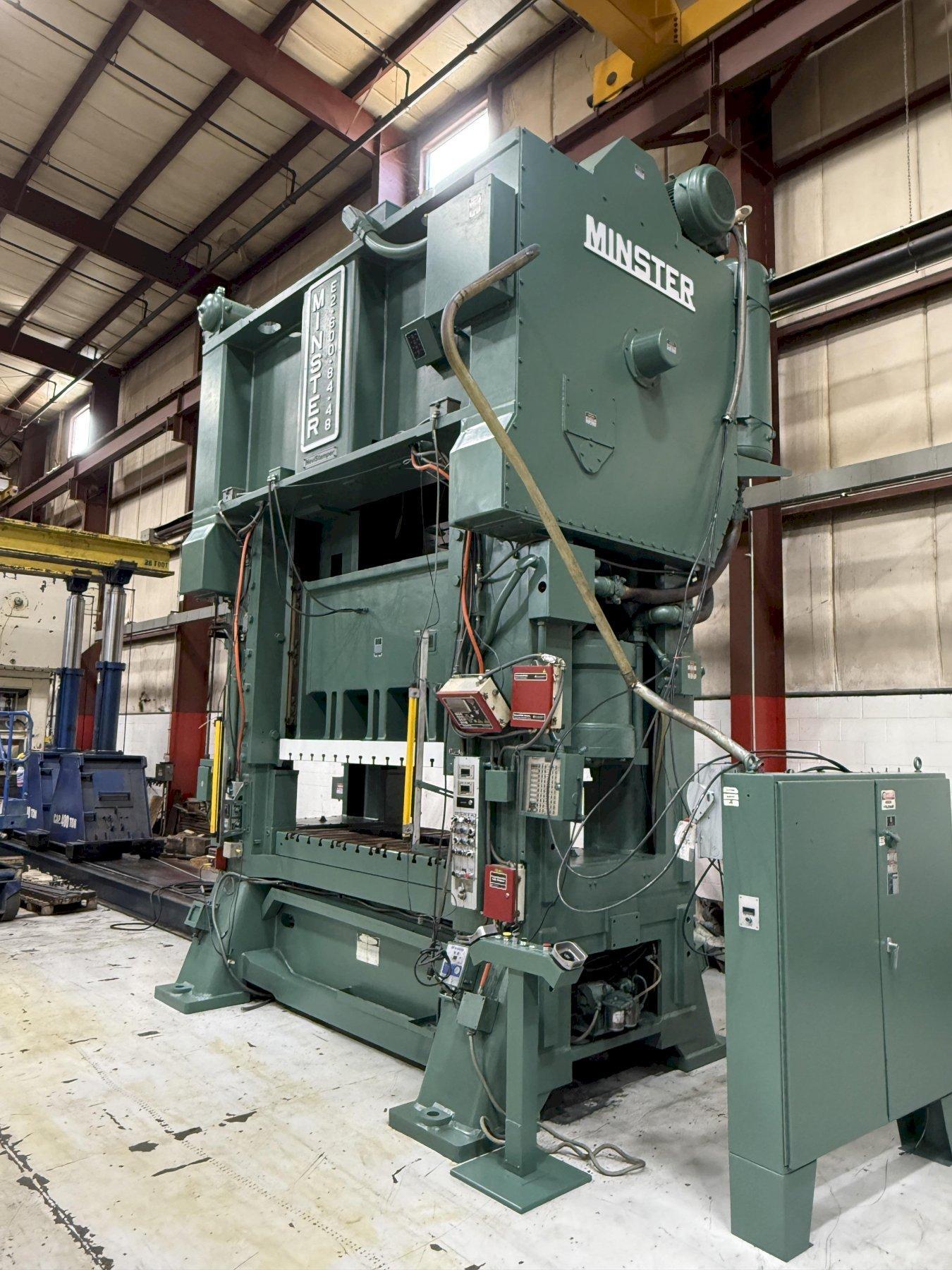

600-ton Straight Side Mechanical Metal Stamping Press

Minster Hevi-Stamper Model E2-600-84 x 48

600 ton Capacity

12" Stroke

32" Shut Height

25" Die Height on Bolster

6" Motorized Adjustment

84" LR x 48" FB Bed Area

84" LR x 48" FB Slide Area

0-60 VSPM

Equipment and Features

Air Clutch and Brake

Air Counterbalances

Monitor Flow Recirculating Lube System
Single Geared - Twin End Drive
8 Point Adjustable Gibs
Arranged for 3 Crossbar Knockouts in Ram

T-Slotted Ram and Bolster

Banner Light Curtains
42" Floor to Top Of Bed

Wintriss Smart Pak 2 Press Control
Wintriss Die and Overload Protection

Wintriss Brake Monitor

Palm Button Station

Free Standing Console Controls

33" wide Windows
100 HP / 1800 RPM Eddy Current Drive
480 volt / 3 phase / 60 Cycle

Vibratory Leveling Pads
